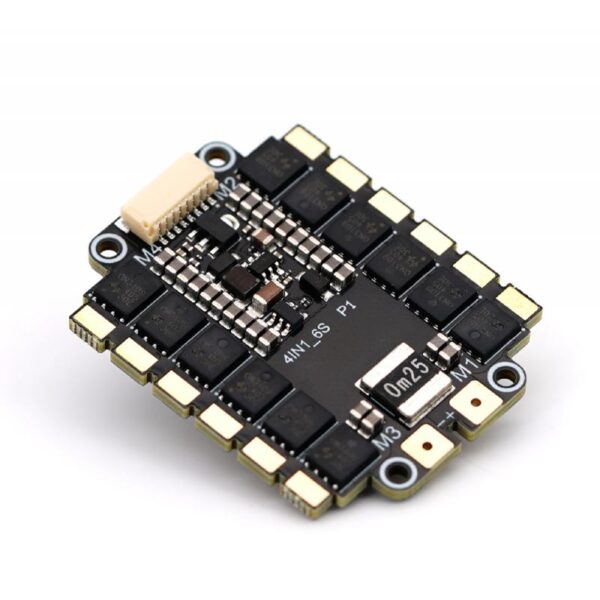

Team BlackSheep Lucid 6S 4in1 ESC

The TBS Lucid flight stack is the latest in product engineering at TBS. Built for racing and freestyle applications and developed to cater to the needs of both seasoned pilots and enthusiastic newcomers. Featuring an 8 layer high current density board with twice the market average on-board capacitance, the ESC is built to withstand the harshest punishment of everyday FPV flying while delivering buttery-smooth flight characteristics paired with face-melting acceleration. By focusing on thermal dissipation from the ground up, the flight stack achieves excellent power to weight density without the need of heavy heat sinks. A close collaboration with AM32 allowed us to squeeze the last bit of performance without breaking the bank. Specifications ESC software: AlkaMotors32 (AM32) ESC target: AM32_TBS_6S_4IN1_F421 Rated current: 60A x 4, 300 seconds Peak Current: 70A x 4, 60 seconds Propellers: Up to 9″, over 7″ requires good airflow Input: 3-6S Lipo Protocol: Bi-directional Dshot 300/600), KISS ESC Telemetry ESC current port: Yes BEC: No Size: 34mm*44mm Mounting: Gorilla-mount (39.5 x 16.0mm) or brackets for 20×20 mm, 30.5×30.5 mm Weight: 13.81g, 19g incl. brackets   Gorilla mount Superior power delivery is additionally achieved by the innovative mounting brackets which avoid the complication of having to run mounting bolts through the middle of the ESC. We call this the “Gorilla” mount. Frame developers are encouraged to integrate the gorilla mounting pattern into their new and upcoming frames. Backwards compatibility is provided through mounting brackets. Includes TBS Lucid 4in1 ESC 4x 2.2x4mm standoffs Aluminum top bracket for 20×20 FCs XT60 power connector 470uF 6S Capacitor 4x M2x12 screws 4x M2x14 screws Gorilla-mount (not included) Downloads Gorilla mounting pattern Frame developer pack for Gorilla mounting pattern AM32 Online Configurator AM32 Firmware TBS Lucid Manual
